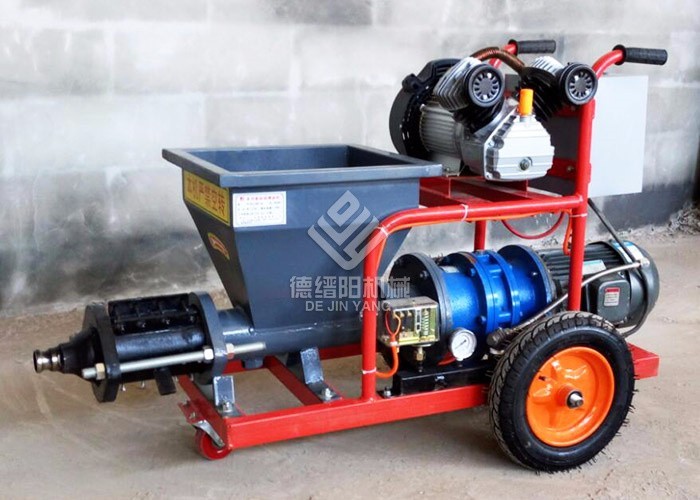

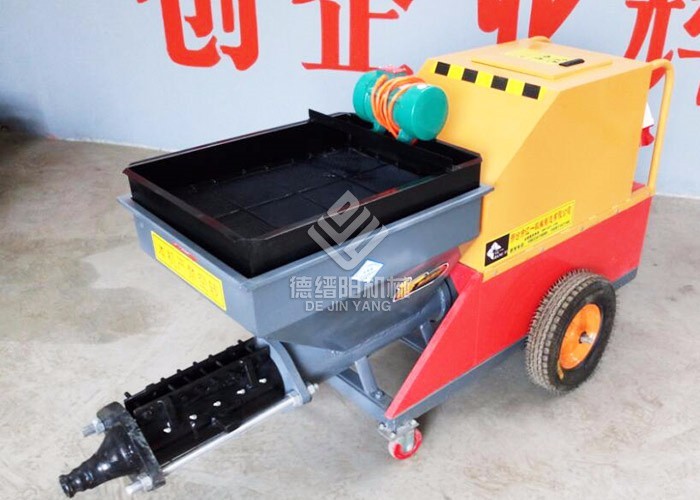

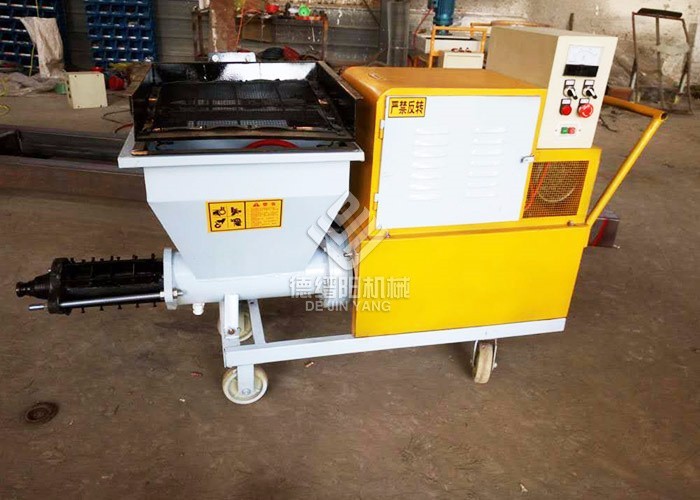

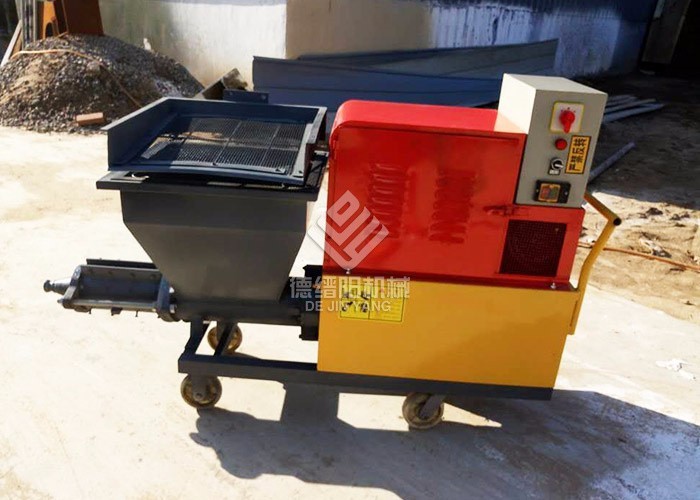

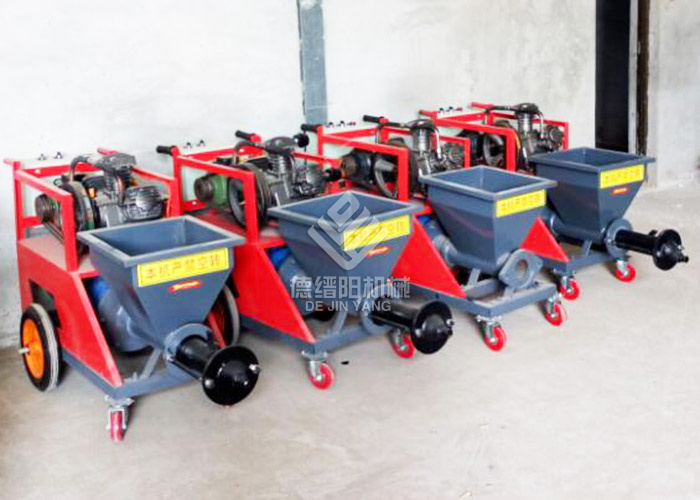

Introduction of the mortar spraying machine
The kind of high pressure mortar spraying machine, adopted advanced technology, operation and simple maintenance, no special training can be proficient in operation.
1. The features of the mortar spraying machine, save water, save material, can reduce more than 20% of the cost.
2. The operation is simple, do not need scaffolding, don't have to mobile devices, need not repair the grounds, are free to spray Angle, roof, shortening the time limit for a project, to improve the schedule, and cut down the cost of the frame material expenses.
3. Speed, high efficiency, low labor intensity, a sprayer can easily spray 150m3 per hour, remove preparation time, work 8 hours a day calculations, can spray is above 1000 m3, equivalent to 20 skilled several day of work.
4. Multi-usage, can spray mortar, waterproof material, is not subject to regional and environmental conditions and the influence of the coating surface shape.
Mixture Ratio of High performance plastering mortar spraying machine for sale
Due to region diversity, the cement and sand are different. According to the national standard ratio of 1:3 and considering the operation of our machine, the ratio is listed as following:
Item | Cement | Sea sand (fine sand) | River sand (middle sized sand) | Lime |
For rending | 1 | 1.5 | 1.5 | 0.5 |
For Surface coating | 1 | 3 | — | 0.5 |
Remark: the grain diameter should be less than 3mm
Application of High performance plastering mortar srpaying machine for sale
Machine-applicable gypsum plasters, Insulating plasters, Lime-gypsum plasters, Cement render, Lime plasters, Cement-lime render, Masonry mortars, Slot mortars, Reinforcing and bonding mortars, Self-leveling floor screeds, fango materials, and many more. Projects of High performance plastering machine srpaying machine
Interface agent, rendering of normal mortar, plastering of wire frame structure plates, the grouting of terrace, anti fire and anti corrosive coatings, some high-density coatings, etc.
Parameter of Plastering Mortar Spraying Machine
Model | DJY-Z100 | |
Voltage | 380V | |
Power | 4KW | |
Delivery capacity | 3-60L/min | |
Delivery pressure | 30bar | |
Delivery distance | 0-100m | |
Delivery height | 50m | |
Maximum aggregate diameter | 3mm | |
Hopper capacity | 50L | |
Maximum length of delivery hose | 100m | |
Weight | 165kg | |
CTN’s Dimension | 1310×640×1180mm | |
Accessories | 15m delivery hose, 1 high pressure gun, 1 low pressure gun, 16m air hose, 20m manual operation wire, key for control box, instruction book, sponge balls, screw and nuts, etc. |
