Manually Dry Mortar Line

Introduction of small dry mix mortar production line

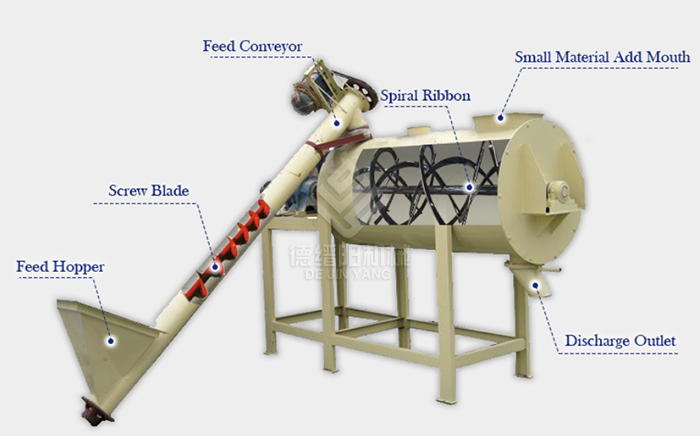

Simple dry mortar ribbon mixer is developed based on the U-type horizontal spiral ribbon mixer which has been distributed to a lot of cities by us, after times of improvement. Since it is designed with three -layer successive spiral ribbons, it may have three layers of material flows; therefore, during the convention process, the materials maybe mixed rapidly and evenly in such a manner of penetrating through each other and accomplishing displacement.



Application of dry mortar mixing plant production line;

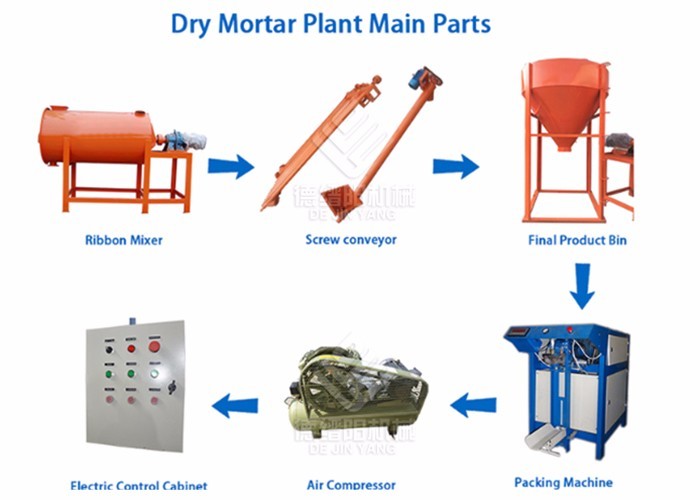

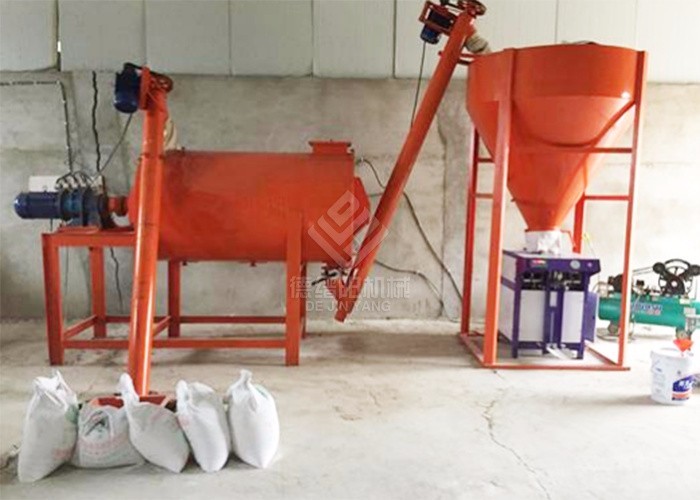

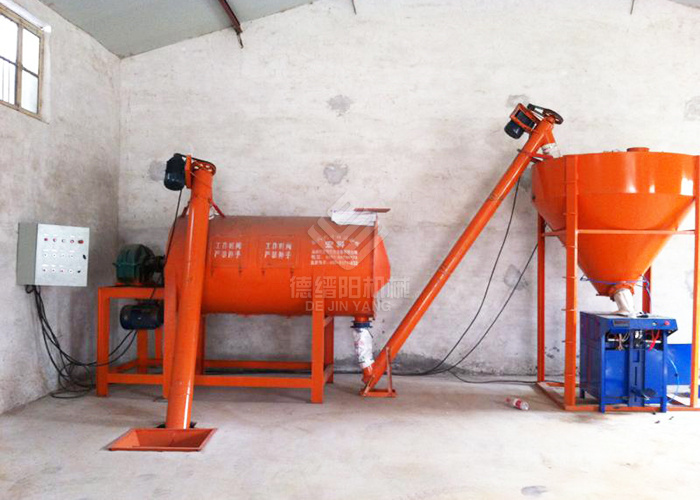

This manually feeding type simple dry mortar mixing line usually equipped with drum type ribbon belt dry mortar mixer ,feeding screw conveyor ,second conveyor, end product hopper and packing machine, with the bag filter machine. It can also equip with open port packing machine according to customer's requirements.




Widely used to produce the following various kinds of dry mortar :
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc;
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc;
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.





Features of manually feeding type dry mix mortar line

Lowest investment ,efficient performance ;

Occupied small area , easy to operate the line;

Few labors required,also conveniently to do maintenance.

LD series manually feeding type dry mix mortar line, output capacity 0.5t-8t per hour.



Parameter of dry mix mortar line


Model

Total Powder

Capacity

Occupied  area

Mixing Time

LD500

17.5kw

1-1.5TPH

5-10m2

15-20 minutes/batch

LD1000

19.5kw

2-3TPH

5-10m2

15-20 minutes/batch

LD2000

24.0kw

5-6TPH

10-15m2

15-20 minutes/batch

LD3000

28.0kw

6-8TPH

15-20m2

15-20 minutes/batch
