Introduction of Lacquer Mixer Machine

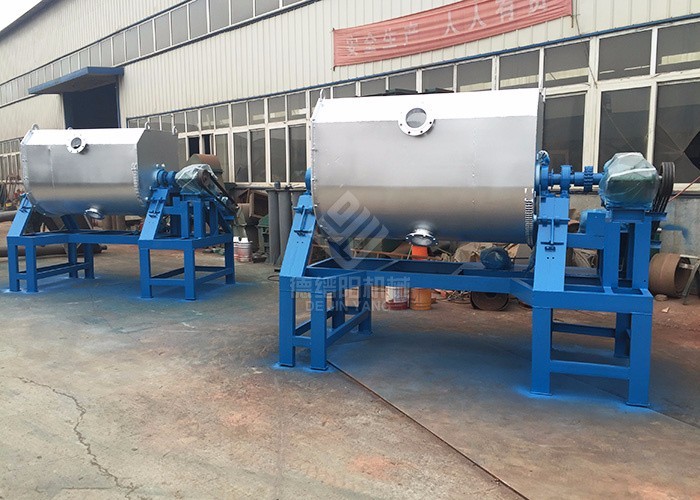

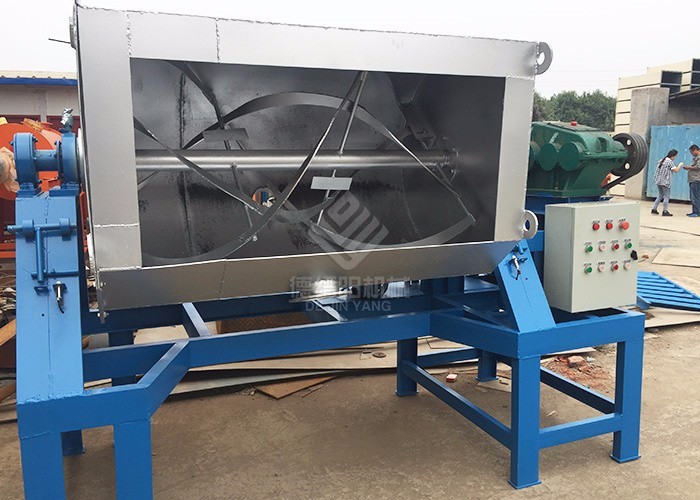

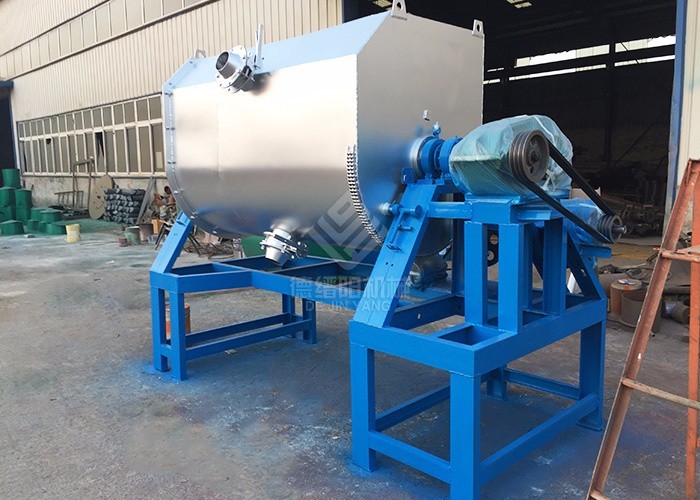

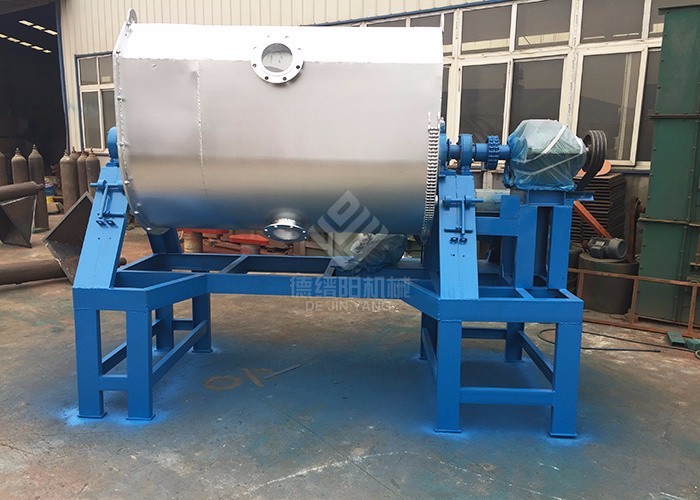

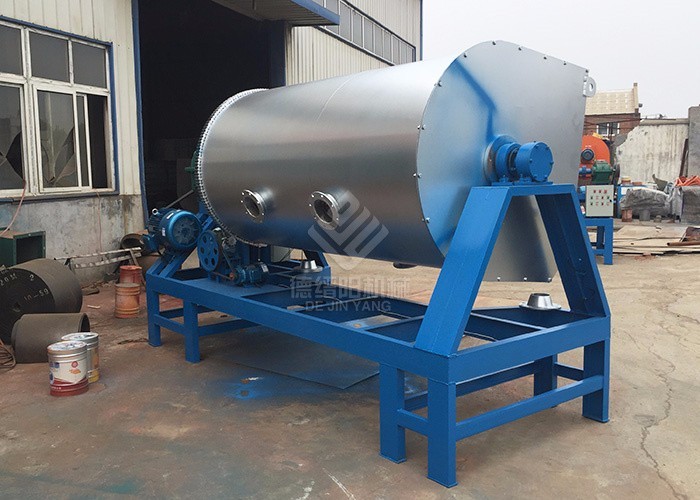

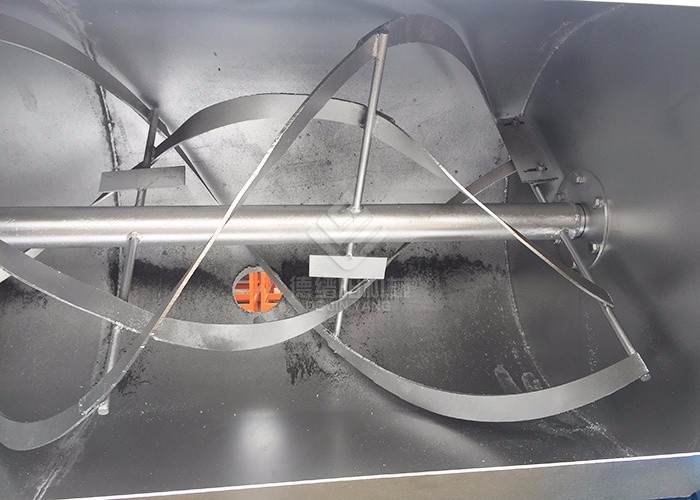

Horizontal stainless steel lacquer mixer use all-stainless steel, U-type swivel design, a single batch was stirred amount 3-50T .Horizontal stainless steel lacquer mixers, with automatic limit switches, multiple protection, greatly improving the equipment,safety during operation. Mixer adopt outer and inner layers ribbon blender, coiled form with the rotational direction of the material from both ends toward the middle push, and the inner spiral push with the material from the middle to the ends that to form to convective mixing.
Advantage of Lacquer Mixer Machine
1. Small footprint,low overall equipment,facilitate feeding;
2. motor power small, more energy-efficient, easy to operate,
3. Stir evenly, high speed, well sealed, and no vibration;
4.High discharge speed,rotating body design, less residue;
5. Machine mirror polished, easy to clean;
6. Equipped with multiple limit switches, high safety
Working principle of Lacquer Mixer Machine
Horizontal ribbon mixer is a new type of mixing equipment with high efficiency, high uniformity, high load factor, low energy consumption, low pollution and little destruction to frangible material. putty paste ribbon mixer is widely used to mix powder-powder and powder-liquid, especially materials that are paste, viscous or with big specific gravity such as putty, stone coatings, metal powders etc. putty paste ribbon mixer
Parameters of Lacquer Mixing Machine
Model | DJY-1 | DJY-3 | DJY-5 | DJY-10 | DJY-20 | DJY-30 | DJY-50 |
Output capacity | 1 t/batch | 3 t/batch | 5 t/batch | 10 t/batch | 20 t/batch | 30 t/batch | 50 t/batch |
Power | 5.5kw | 11kw | 18.5kw | 22kw | 37kw | 45kw | 75kw |
Mixer reducer | ZQ250 | ZQ300 | ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ1000 |
Mixer Cylinder Dimension (mm) | 1260*800*950 | 1900*1200*1350 | 2460*1380*1450 | 3000*1800*1800 | 4500*2000*2170 | 4590*2250*2450 | 6750*2550*2700 |
Overall Dimension (mm) | 2235*1000*1950 | 2920*1320*2310 | 3700*1500*2420 | 4240*1800*2582 | 6160*2100*3200 | 7000*2600*4000 | 9035*2700*3350 |
