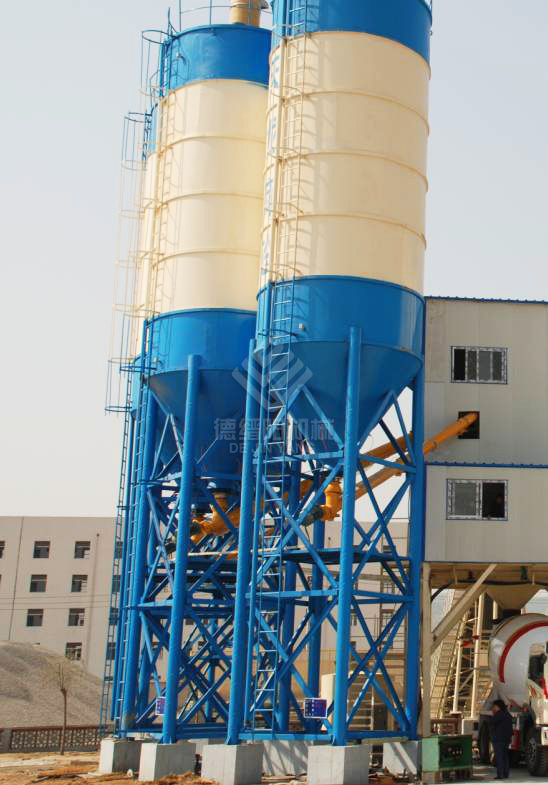

Introduction of storage silo
It mainly used as steel cement silo, storage silo usually as the accessory part for Dry Mix Mortar Plant, Concrete Batching -Mixing Plant, Stabilized Soil Mixing Station, Cement Production Plant, Cement Packing Machinery, Cement Transfer-warehouse, etc.
Our steel storage silos are equipped with safety valve to balance the pressure inside and outside the silos.

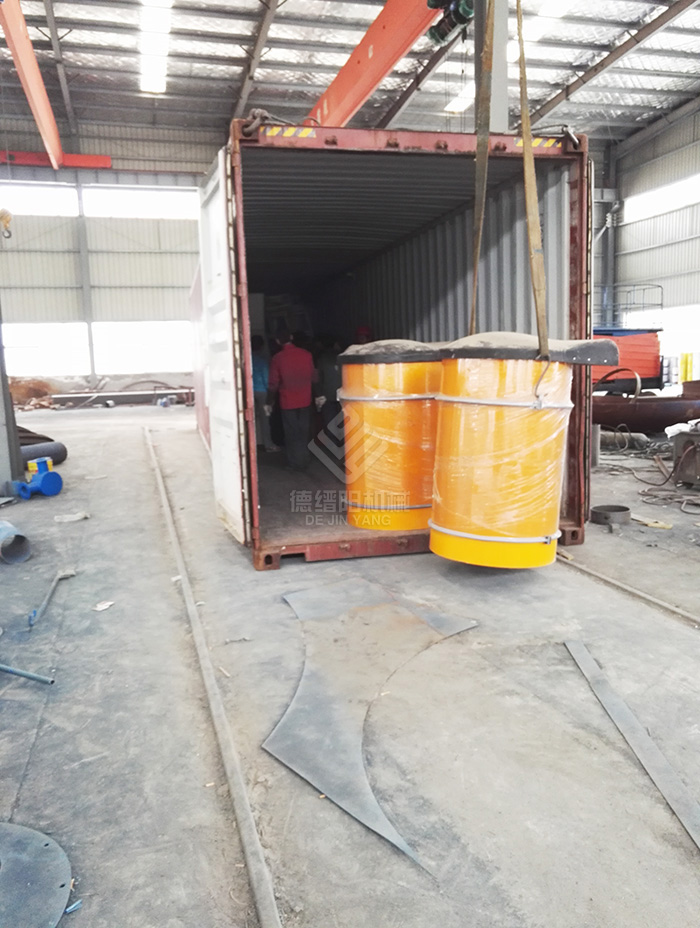

It can be equipped level indicator so as to monitor the material level and amount. With the screw conveyor, the materials can be conveyed to a certain position. Suitable for loading into containers and exporting. Perfect sealing assure its efficient working performance.

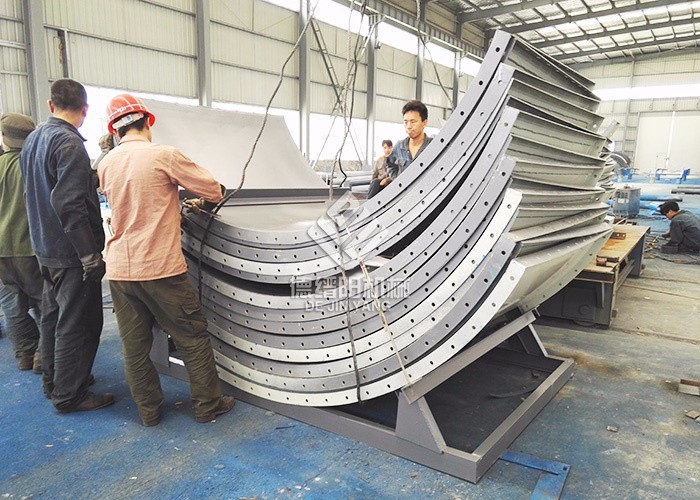

Our Bolted Cement Storage Silo For Export Market, detachable cement silos which are manufactured in different capacities, provide great advantages especially in transportation.
Features of storage silo
1. Equipped with a safety valve at the top of cement storage silo, cement silo used to balance the pressure difference between inside and outside.
2. Upper and lower parts of the cement silo is equipped with display materials, can monitor the number of cement materials warehouse. With gas in the lower part of broken cement storage devices, to ensure smooth unloading.
3. Cement bin/silo is cylinder and supporting structure. The superior part has dust removing device to avoid leakage of dust; and the inferior part is equipped with arch breaker to avoid powder caking and make discharging smooth, and bin level sensing device to master usage of material in the bin at any time.
4. Cement storage silo generally adopts bulk cement conveying truck to send powder in the bin by pneumatic conveying; according different structures of cement bin silo, there are two kinds of discharging: the first is the inferior part is connected with screw conveyor and screw conveyor send powders into powder measure; the second is to adopt pneumatic conveying (to special cement bin).
Parameters of Storage Silo
Each section is divided into three pieces, the height of each section is 1.5 meters.
Top cover is divided into two pieces
Cone is divided into 5 pieces
Discharging height (m)
Landing leg height (m)
Landing leg height depend on discharging height
Pneumatic arch breaker / Electric vibrator , 1 unit
Dust collector / electric dust collector
