Vibrating Screen

Introduction

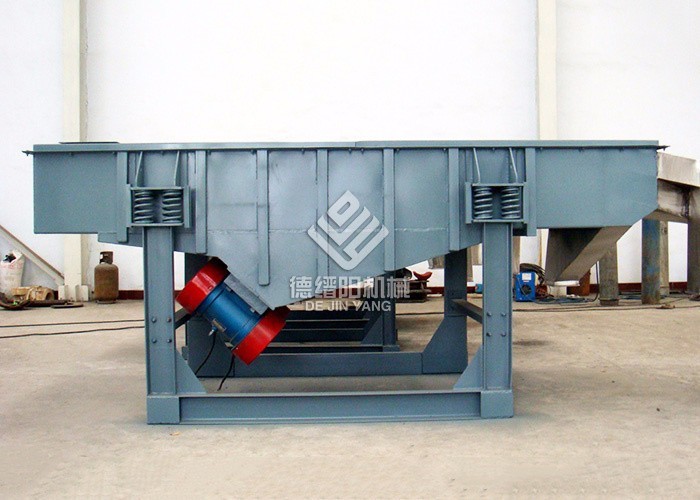

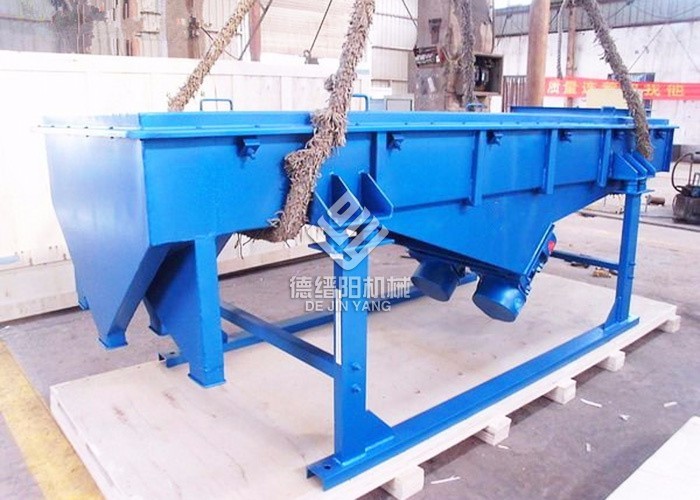

Linear Vibrating Screen is a kind of equipment that utilizes the excitation of vibrating motor to make the materials be thrown up and forward for linear motion. The materials will enter the feeding port of the vibrating screen evenly, through the screening of multilayer screens and lastly discharged from each outlet.



Performance and Features of liner vibrating screen
Common advantages and features of our Linear Vibrating Screen:
1.Suitable for rough screening with high capacity.
2.Long travel distance for materials on the screen surface, high screening efficiency.
3.Parallel transportation of materials while screening.
4.Adjustable inclination of screen surface.

Drive and Mounting of Linear Vibrating Screen:

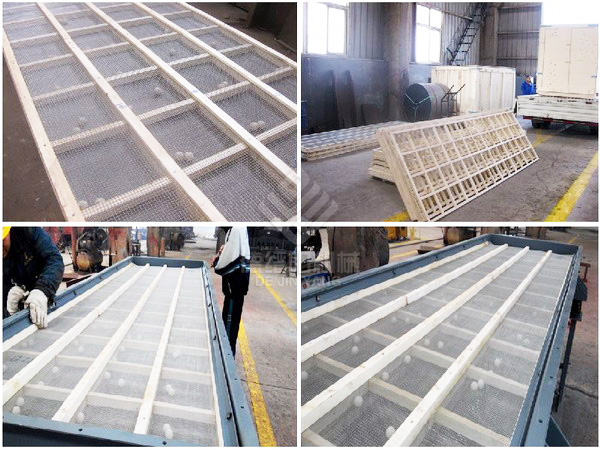

1.Drive is achieved by electric motor with carden shaft to the drive shaft equipped with twin unbalance adjustable weights where required additional v-belt drive can be provided. The number of exciters is increased according to screen width and two models are available with the exciters arranged above the screen or below depending on application.
2.Each unit is mounted on hollow, reinforced rubber springs which reduce noise levels, reduce dynamic forces, have optimal expansion and contraction properties without the need for bump stops and dispense with the need of a counter swing frame.

Working Principle of Linear Vibrating Screen:

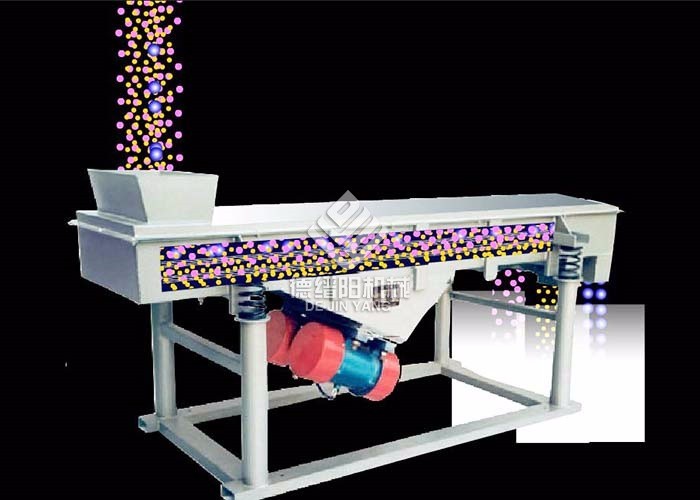

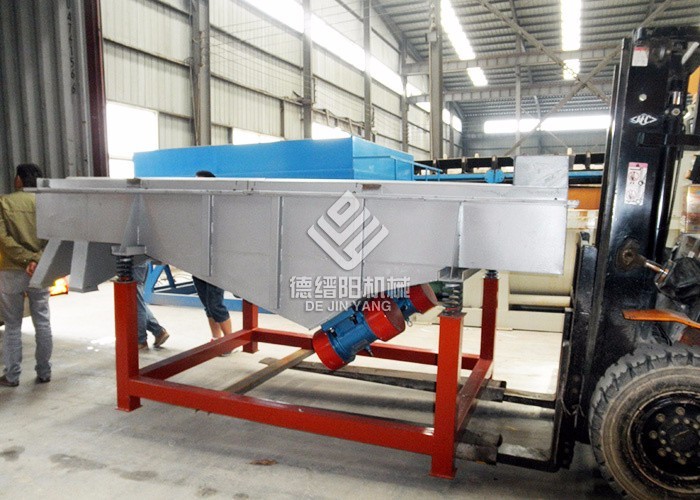

Linear Vibrating Sieve adopts dual vibrating motors. When the two motors rotate synchronously and reversely, centrifugal force that generated is offset in the parallel direction of motor axis, and stacked together as a resulting for the perpendicular direction of the motor axis. Hence, the screening trajectory is in linear motion. There is an angle of inclination which relative to the sieve surface of two motors. Due to the influence of the resulting force of exciting force and the force of gravity, the materials thrown up on the screen and leaped forward in linear motion so as to achieve the purpose of screening and grading of materials.

Application and Advantages of Linear Vibrating Screen:
The linear vibrating sieve can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.


Features of  ZS Series Linear Vibrating Screen has the advantages as follow:
1.Low energy consumption
2.High productivity
3.Simple structure
4.Easy maintenance
5.Fully enclosed structure which prevent the contamination of materials from dust


 Parameters of Linear Vibrating Screen

Model

Screen Surface Area (mm)

Material Size(mm)

Vibrating Times(rpm)

Screen Cloth Obliquity

Amplitude

Screen Decks

Power (Kw)

ZS – 525

500 X 2500

0.074 – 60

960

1 – 7

1 – 4.5

1 – 4

2 X (0.37-0.75)

ZS – 530

500 X 3000

0.074 – 60

960

1 – 7

1 – 4.5

1 – 4

2 X (0.37-0.75)

ZS – 1020

1000 X 2000

0.074 – 60

960

1 – 7

1 – 4.5

1 – 4

2 X (0.75-1.1)

ZS – 1030

1000 X 3000

0.074 – 60

960

1 – 7

1 – 4.5

1 – 4

2 X (1.1-1.5)

ZS – 1225

1200 X 2500

0.074 – 60

960

1 – 7

1 – 4.5

1 – 4

2 X (1.1-1.5)

ZS – 1230

1200 X 3000

0.074 – 60

960

1 – 7

1 – 4.5

1 – 4

2 X 1.5
