Rotary Vibrating Sieve

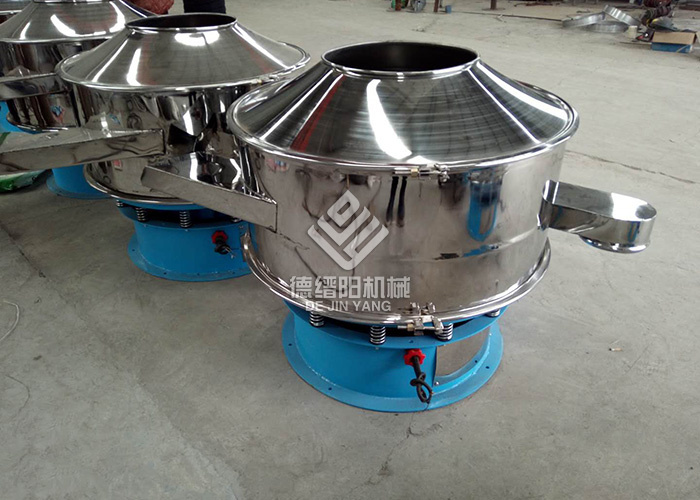

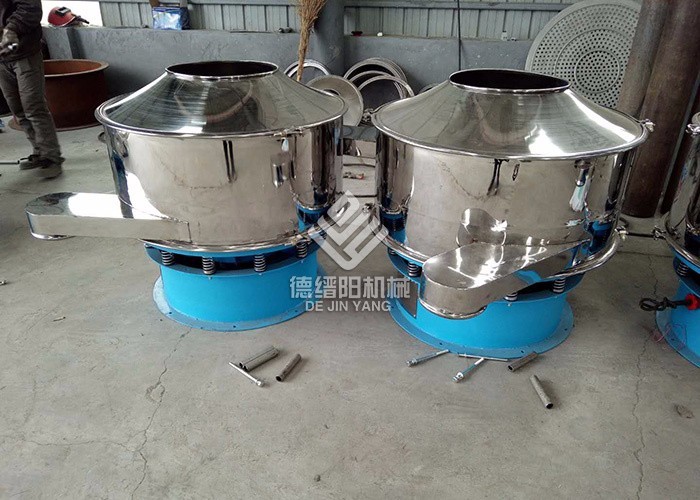

DJYS Vibratory Sieve

DJYS series tumbler screen /vibratory sieve machine is a kind of inertial equipment with mature technology and classical application. Its new design and unique structure make it the closest manual screen machine. The Tumbler sieve machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen.


Application of Vibratory sieve

The Tumbler sieve/vibratory sieve machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving. It is widely used in mine, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.

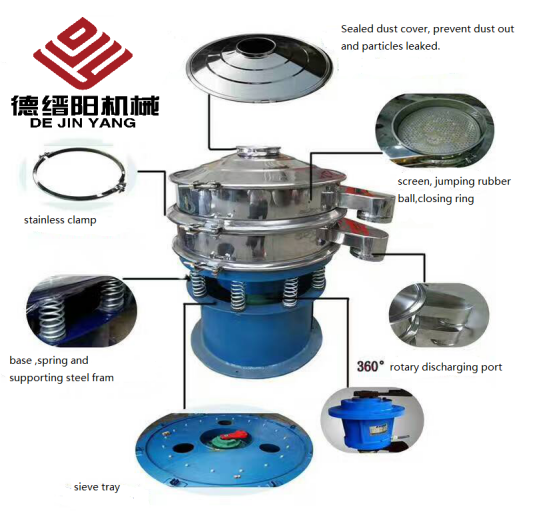

Machine Structure of vibratory sieve


Main Features of Vibratory Sieve/ Tumbler Screen

1.Up to 5 times outlet compared with common sieving machine, at most 6 levels separation.

Sieving efficiency is as high as 90% -95%.

2.Enclosed cleaning dust, safe operation. the acceleration is 4.5 times higher than common vibrating screen

3.Noise<75 dB. Re-optimization is balanced, ground-based dynamic load is low.

4. Slow rotation speed prolongs the machine's life and cuts down the cost.

Parameter of Vibratory Sieve /tumbler screen

Product Name

DJYS  Swing Vibratory Sieve Tumbler Screen


stainless steel / carbon steel


 1-5 layers

Power  supply

240 V/380 V/414 V/440 V/460 V

Rotational speed

200  r/min


600 mm - 2600 mm

Used industry

Food industry,Chemical industry,Medicinal industry,Medicinal industry,Abrasive material and ceramic industry;
